How I made a Kubernetes Cluster with five Raspberry PIs

Working as a DevOps in Scality, I’m exposed to Kubernetes clusters and CI/CD pipelines across the major clouds.

My day-to-day tasks include maintaining Zenko and therefore I typically see large amounts of compute and storage resources at my disposal to test and deploy new infrastructure.

I love Kubernetes and would try to deploy a cluster on anything from a couple of toasters to AWS. And then one day I heard the announcement from Rancher about their micro Kubernetes distribution called K3s (five  less than K8s)

I immediately was hit with an undeniable desire to set up a small, physically portable cluster and test the guts out of K3s. Being a long-time Raspberry Pi enthusiast, naturally, I saw this as an opportunity for a passion project.

The idea is simple but interesting. Take some Raspberry Pis, string them together as a Kubernetes cluster. Far from a unique idea as this has already been done before; however, combined with this light-weight Kubernetes would allow for enough room to fit some workloads. I started to dream about Zenko at some remote edge device where asynchronous replication to the cloud would thrive. I thought: “Let’s do this!THE SHOPPING LIST FOR A TINY KUBERNETES CLUSTER

Start with the shopping list:

  • Five Raspberry Pis 3B+ (Plus memory cards)
  • C4 Labs “Cloudlet” 8 bay case
  • portable TP-link router
  • Anker 6-port 60-watt USB charger
  • 8-port switch

OPERATING SYSTEM HUSTLE

There are countless great guides on how to set up a Raspberry Pi with the various OSes available. On the initial setup, I started with just a basic Raspbian to test out and see if I could find or build ARM images for all the Zenko services. I was able to easily build key components – CloudServer and Backbeat images – with the ‘arm32v6/node’ Docker image as a base.

After that was successful I decided to test out MongoDB, which is the core database we use for our metadata engine. Here’s where I hit my first problem: I found out that MongoDB 3.x version only supports 64bit operating systems. This is something I’ve taken for granted for so long now that I forgot it’s an issue. Fortunately Raspberry Pis 2 or newer use 64bit ARM chips but I still had to find a new OS since Raspbian only comes in the 32bit flavor.

While there is no definitive list, most distributions have an ‘aarch64’ version that typically works with the newer Raspberry Pis. I settled on Fedora 29 mostly because they have a CLI tool to load the image onto the SD card, add an ssh-public-key, and resize the root filesystem to fill the SD card. These are all manual configurations that typically needs to be done after you first boot up your Pi. This also meant that I could set up all five of my Pis without hooking up a keyboard and monitor and immediately have headless servers running.

Note: you can download Fedora from here.

So with all my Pis setup, I’m essentially left with just setting up the Kubernetes cluster.  While I’ve deployed countless clusters on virtual machines and bare-metal servers to the point that I feel like I could do it in my sleep, this time was completely unlike any I’ve done before. Thanks to the K3s installer, I had a cluster with four dedicated nodes and one master/node deployed under five minutes (not including my RPI setup time). Their bootstrap script allows you to set this up super easily. As easy as this:

# On the control server node
curl -sfL https://get.k3s.io | sh -

# Kubeconfig is written to /etc/rancher/k3s/k3s.yaml
k3s kubectl get node

# To setup an agent node run the below. NODE_TOKEN comes from /var/lib/rancher/k3s/server/node-token on the your server
curl -sfL https://get.k3s.io | K3S_URL=https://master-node-hostname:6443 K3S_TOKEN=XXX sh -

PUTTING KUBERNETES ON A MINI-RACK

With the 5-node Pi cluster operational it was time to set everything up in a portable format. The goals here were to only have a single power cable for everything and easily connect to WiFi wherever we take it. However, this also meant we didn’t want to go through the hassle of the manual setup and connecting each Raspberry Pi to the WiFi at every new location we brought it to. The solution was simple, make the network itself equally portable with a small switch and portable router.

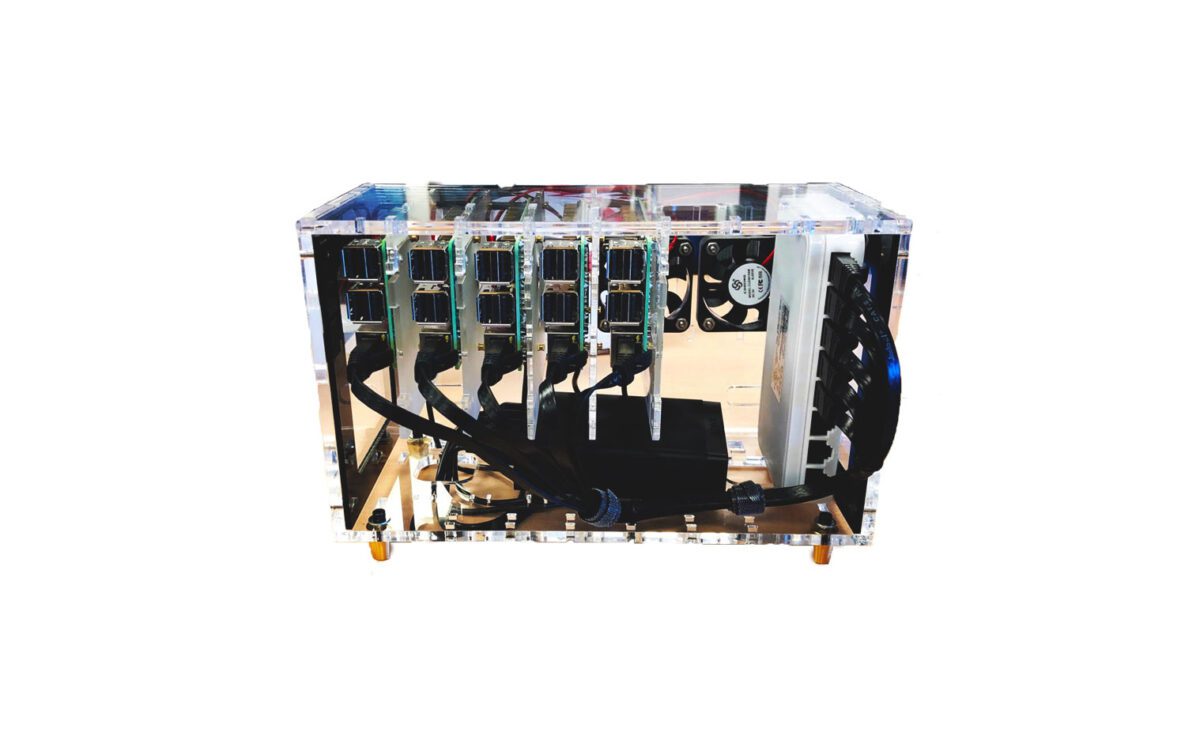

The Cloudlet case from C4Labs is very thought out with wire management in mind and well put together with straightforward instructions for installing all the Raspberry Pis.

In our case, I wanted to be sure to leave room for the portable router, switch, and power brick as well. Fortunately and purely by accident, the length of the switch we ordered fit the exact internal height of the case allowing us to mount the switch vertically. This left us room underneath the Pis for the power brick and allowed us to mount the portable TP-link router in one of the remaining bays.

With all the fans mounted, Pis plugged in, and wires managed we still had one very obvious issue — both the 8-port switch and the USB power brick needed their own plugs. Looking over the switch, I quickly noticed that it ran off 5v which means it could easily run off USB. But I used up all six ports of the power brick for the five RPis and the portable router.

WHAT’S NEXT?

While this is it for me today, the goal is to now put this diminutive cluster through some workloads for a gauge of performance and eventually turn the setup process into some simple Ansible playbooks to streamline to bootstrapping of multiple nodes. Let me know what you think or ask me anything on the forum.
